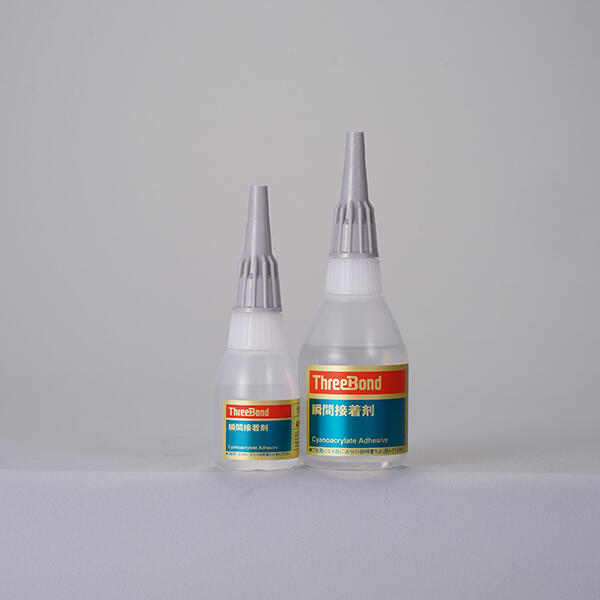

ThreeBond 1731
Structural Bonding

ThreeBond 1731

High peel strength impact-resistant cyanoacrylate (α-cyanoacrylate + elastomer) with 20 cP viscosity, material failure on all rubbers, 20 MPa lap shear (Steel), 34 kJ/m² impact strength for rubber and flexible substrate bonding.

Product code: 1731
Package size: 20g
Shelf Life: 9 months

RoHS Compliant

ThreeBond 1731 is a high peel strength, impact-resistant cyanoacrylate adhesive formulated with α-cyanoacrylate and an elastomer modifier for superior flexibility and rubber adhesion. Manufactured by ThreeBond International, it achieves material failure on all major rubber substrates (NBR, CR, SBR, NR, EPDM) and delivers 34 kJ/m² impact strength on steel — significantly higher than standard cyanoacrylates. It is also moisture resistant and suitable for large bonding areas.

Features & Benefits

  • Achieves material failure on NBR, CR, SBR, NR, and EPDM — the strongest rubber bond possible
  • 34 kJ/m² impact strength on steel — exceptionally impact resistant vs. standard cyanoacrylates
  • High T-peel strength: 3.0 kN/m on steel (material failure on rubbers)
  • Moisture resistant formulation — suitable for humid environments and large bonding areas
  • Elastomer modifier provides flexibility and shock absorption in bonded joints
  • Effective on metals: 20.0 MPa (Steel), 17.0 MPa (SUS), 11.0 MPa (Aluminum)

Typical Applications

  • Bonding speaker frames to magnets in audio transducers and consumer electronics
  • Bonding coil terminals, insulators, and O-rings in electronic and electrical assemblies
  • Metal-to-rubber bonding of damping and sealing components in automotive assemblies
  • Bonding rubber parts and flexible substrates requiring impact and peel resistance
Property Value Test Method / Condition
Appearance Light yellow Visual
Viscosity 20 mPa·s (cP)
Main Component α-cyanoacrylate + elastomer
Set Time (NBR/NBR) 60 seconds
Set Time (Steel/Steel) 30 seconds
Lap Shear (Steel/Steel) 20.0 MPa (200 kgf/cm²)
Lap Shear (Aluminum/Aluminum) 11.0 MPa (110 kgf/cm²)
Lap Shear (SUS/SUS) 17.0 MPa (170 kgf/cm²)
Lap Shear (NBR/NBR) Material Failure
Lap Shear (CR/CR) Material Failure
Lap Shear (Steel/NBR) Material Failure
T-Peel (Steel/Steel) 3.0 kN/m (8.0 kgf/25mm) 90°
T-Peel (NBR/NBR) Material Failure
Impact Strength (Steel/Steel) 34 kJ/m² (35 kgf·cm/cm²)
📄
Technical Data Sheet
ThreeBond-1731-cyanoacrylate-adhesive.pdf
